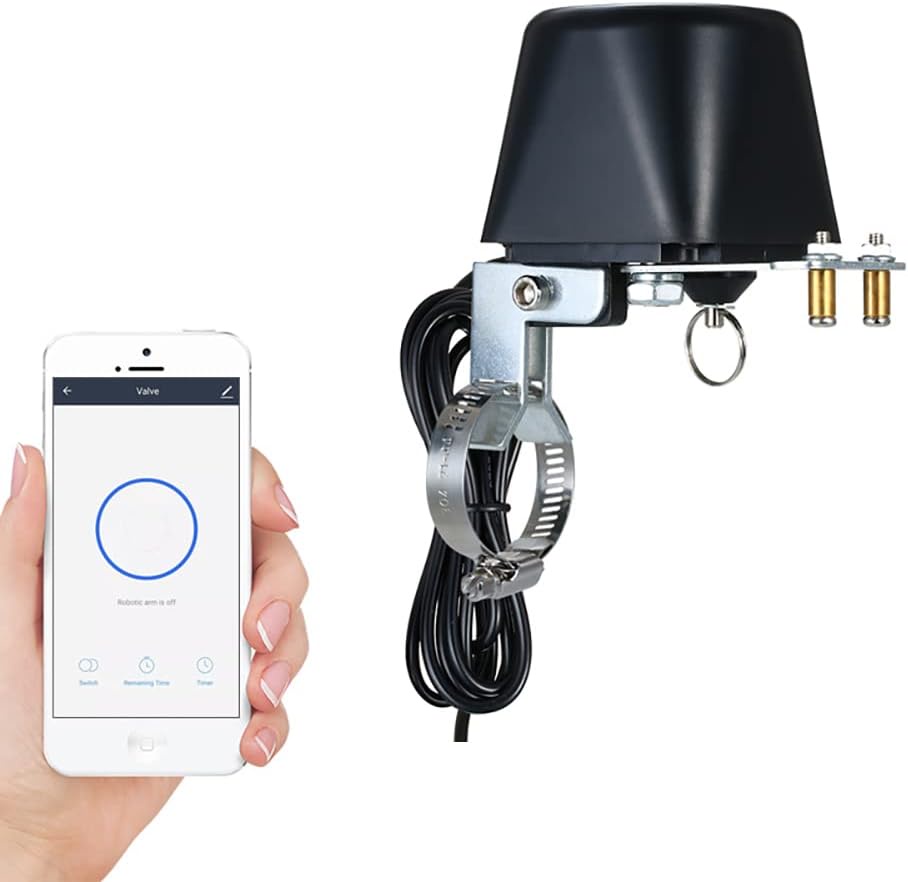

WI-FI Smart Water Valve Controller - Automatic Shut-Off Timer & Wireless Remote Control,

Brief Description

Never worry about leaving the water on again. This WI-FI Smart Water Valve turns your existing manual lever valve into a fully automated system. Whether you need to shut off the main water line during a leak or automate your garden’s irrigation system, you can do it all from your smartphone. It integrates seamlessly with your smart home ecosystem for voice-activated control and scheduled automation.

Product Features & Specifications

Core Features

• Remote Management: Open or close your valve from anywhere in the world via the mobile app.
• Voice Control: "Alexa, turn off the water valve." Fully hands-free operation for hard-to-reach pipes.
• Leak Prevention: Pair it with a smart water sensor to automatically shut off the water the moment a leak is detected.
• Manual Override: Features a manual pull-ring to release the clutch, allowing you to operate the valve by hand during power outages.
• Schedule & Timer: Set specific times for garden watering or pool filling to conserve water and reduce bills.

Technical Specifications

• Wireless Protocol: 2.4GHz Wi-Fi (No hub required)
• Power Supply: DC 12V / 1A (Adapter included)
• Valve Pressure: 1.6 Mpa
• Torque: 30–60 kg.cm
• Automatic Closing Time: 5–10 seconds
• Operating Temp: -10°C to 50°C
• Compatibility: Fits 1/2", 3/4", 1", 1.25" ball valves

Simple Installation Instructions

You don't need a plumber. This device fits over your existing ball valve lever.

1.Mount the Bracket:2 mins.Place the mounting bracket onto the pipe behind the manual ball valve. Tighten the stainless steel hose clamps until secure.

2.Align the Motor:3 mins.Position the smart controller so the motor arm aligns directly with the valve handle. Ensure the "fork" of the controller holds the valve lever firmly.

3.Secure & Power On:1 min.Tighten the mounting screws on the controller. Plug the DC adapter into a power outlet and the device.

4.App Pairing:2 mins.Open the Smart Life or Tuya app, hold the power button on the valve for 5 seconds until it flashes, and follow the on-screen prompts to connect to your Wi-Fi.

Frequently Asked Questions (FAQ)

Q: Do I need to cut my pipes to install this?

A: No. This is a non-invasive installation. It sits on top of your existing manual lever valve and moves the handle for you.

Q: Will this work during a power outage?

A: The Wi-Fi features will be offline, but you can pull the manual clutch ring on the bottom of the unit to move the valve by hand.

Q: Is the device waterproof?

A: It is IP65 rated, meaning it is protected against rain and dust. However, for outdoor use, we recommend a small protective cover to shield it from direct heavy downpours and prolonged UV exposure.
