Zigbee Smart Water Valve - Automatic Shut-Off Controller, APP Remote Control, Works with Alexa & Google Home

Brief Description

Protect your home from costly water damage and automate your garden irrigation with the Zigbee Smart Water Valve. This heavy-duty controller retrofits onto your existing ball valve in minutes, giving you the power to shut off your water supply from anywhere in the world via your smartphone. Designed for the modern smart home, it offers rock-solid Zigbee connectivity for faster response times and lower power consumption compared to standard WiFi models.

Product Features

• Remote Shut-Off: Close or open your main water line via the app, even if you are thousands of miles away.
• Leak Linkage: Pair with Zigbee water leak sensors (sold separately) to automatically shut off the water the moment a leak is detected.
• Voice Command Ready: "Alexa, turn off the water valve." Fully compatible with Amazon Alexa and Google Assistant.

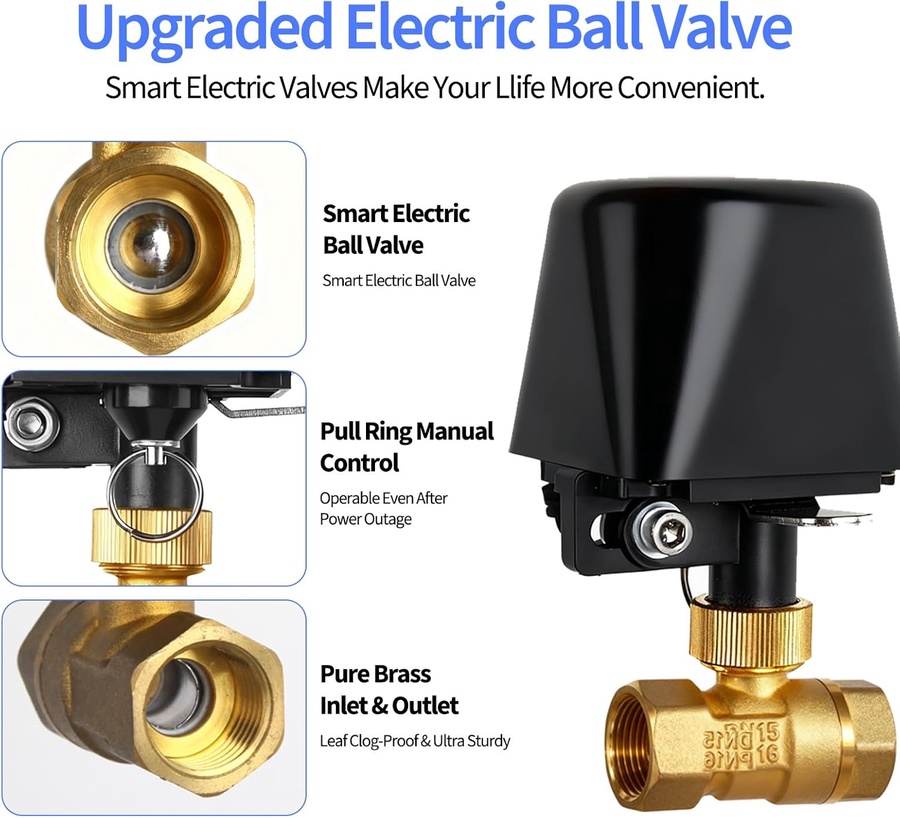

• Manual Override: Features a manual pull-ring to disengage the motor, allowing for manual operation during power outages.

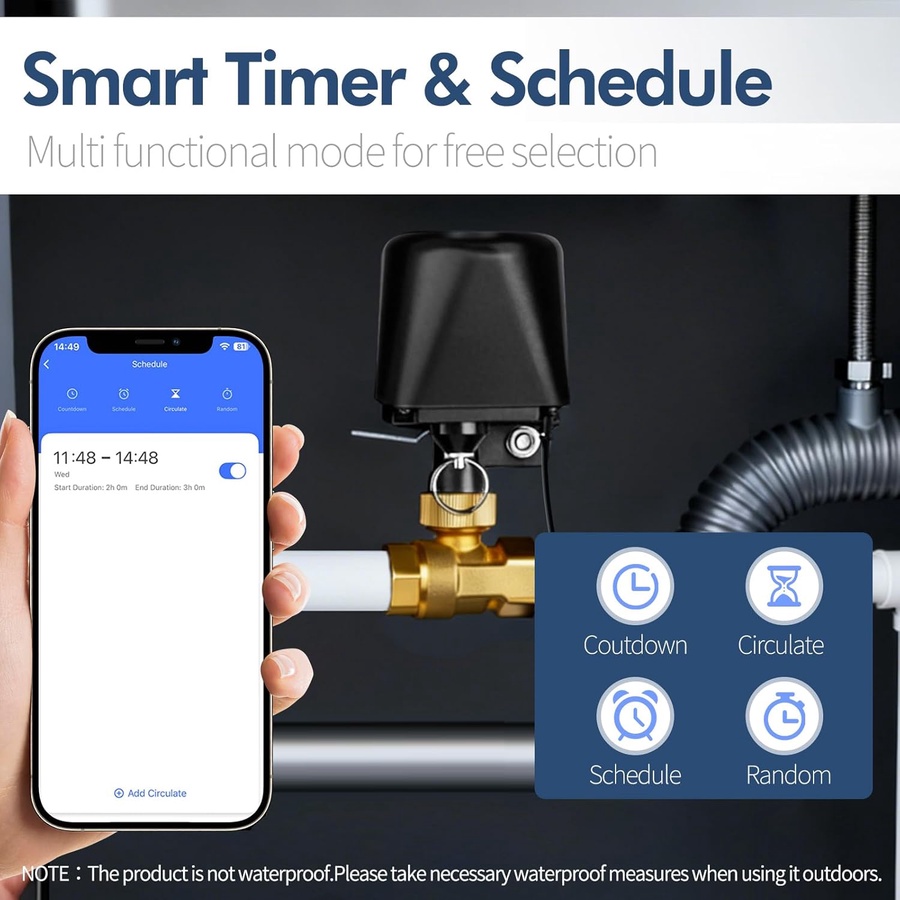

• Anti-Seize Technology: Includes a self-cleaning cycle feature to ensure the valve never gets stuck due to mineral buildup.

Technical Specifications

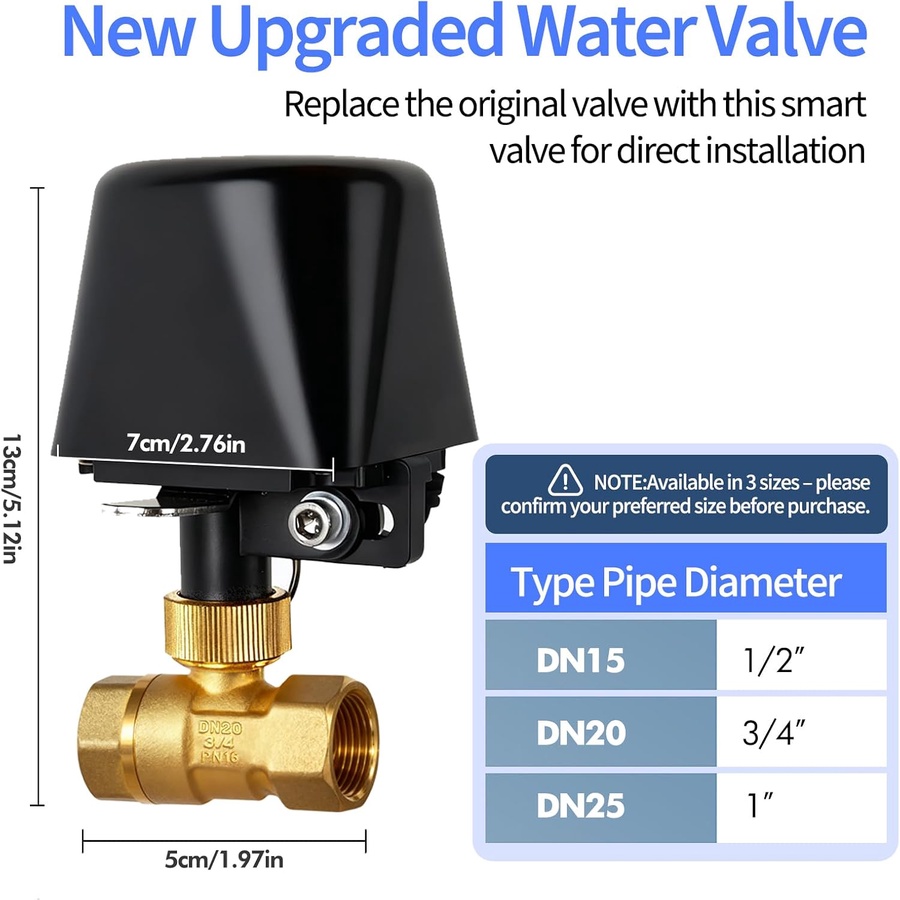

FeatureSpecificationCommunicationZigbee 3.0 (Hub Required)Wireless Range30m - 50m (Open Area)Valve Pressure1.6 MPaTorque30 - 60 kg.cmOpening/Closing Time5 - 10 SecondsPower SupplyDC 12V / 1ASupported Pipe Sizes1/2", 3/4", 1", 1.25"

Simple Installation Instructions

1.Mount the Bracket:No plumbing required.Secure the metal mounting bracket to your existing water pipe using the provided stainless steel clamps. Ensure it is aligned with the handle of your manual ball valve.

2.Align the Motor:Check the pivot point.Place the Smart Valve controller onto the bracket. Align the motor's fork with the handle of your ball valve. Ensure the pivot point of the motor is directly above the pivot of the valve.

3.Secure & Connect:Tighten all bolts.Tighten the mounting screws so the unit is firm. Plug the DC 12V adapter into a nearby power outlet.

4.Zigbee Pairing:Requires Zigbee Gateway.Put your Zigbee Hub into "Add Device" mode. Pull and hold the valve's manual button for 5 seconds until the indicator flashes to begin pairing with the App.

Frequently Asked Questions (FAQ)

Q: Do I need to cut my pipes to install this?

A: No. This is a "retrofit" device. It sits on top of your existing manual ball valve and moves the handle for you.

Q: Does it work without a Zigbee Hub?

A: No, this device requires a Zigbee Gateway (like the Nexdom or Tuya Zigbee Hub) to connect to the internet and your phone.

Q: What happens if there is a power cut?

• A: The valve will stay in its last position. You can pull the manual release ring on the bottom of the unit to move the valve by hand.
